Rag Tearing machines
Technical Information
| Specification |
Details |
| Processable materials |
Post-industrial and post-consumer textile waste, including worn clothing, garment offcuts, loom selvedge, spinning hardwaste, nonwoven and composite textiles |
| Working widths |
1,500 mm or 2,000 mm |
| Number of drums |
1 to 6 modular drums, each 1,000 mm diameter × 1,500 – 2,000 mm width |
| Production rate |
800 to 3,000 kg/h (depending on fiber and drum configuration) |
| Total installed power |
Depends on the number of drums and width |
Machine Description

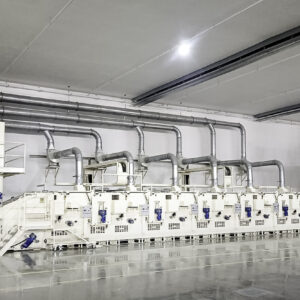

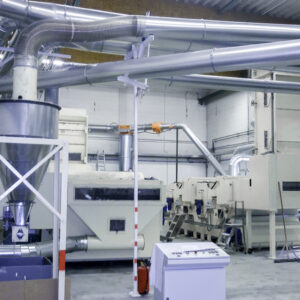

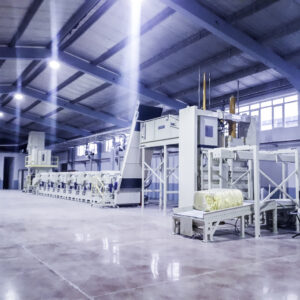

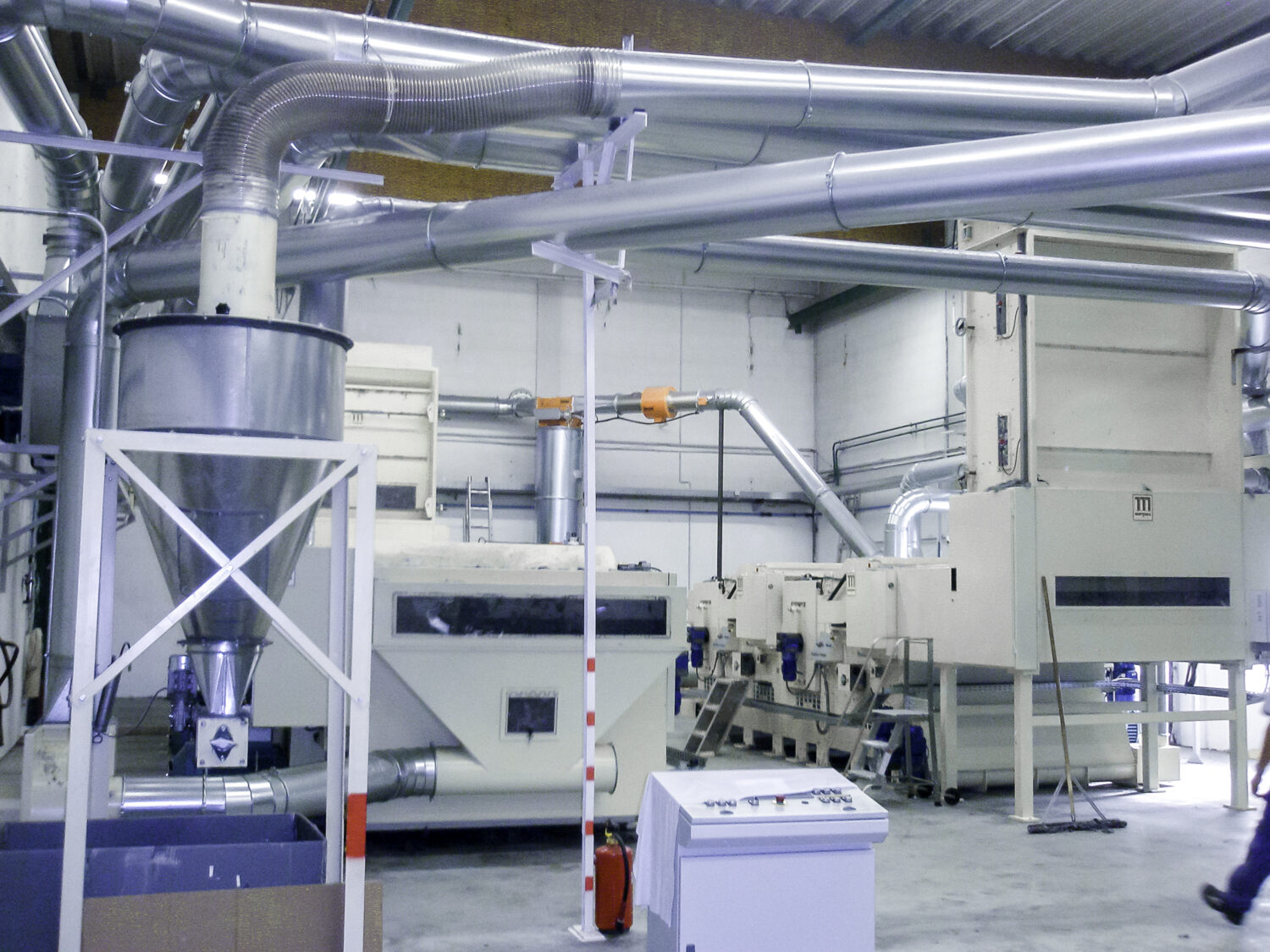

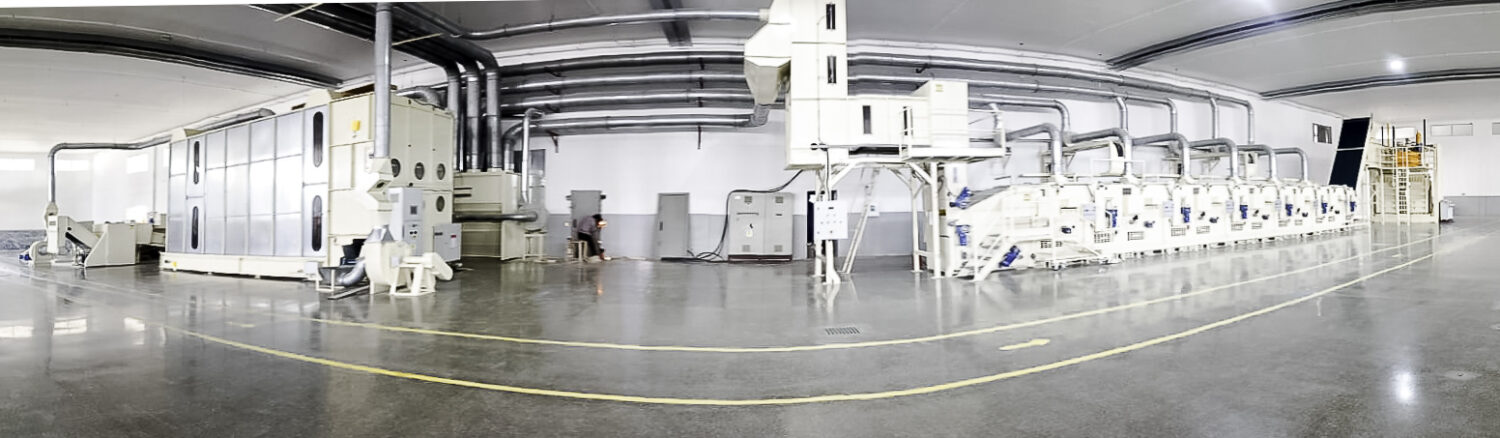

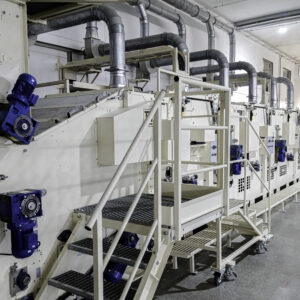

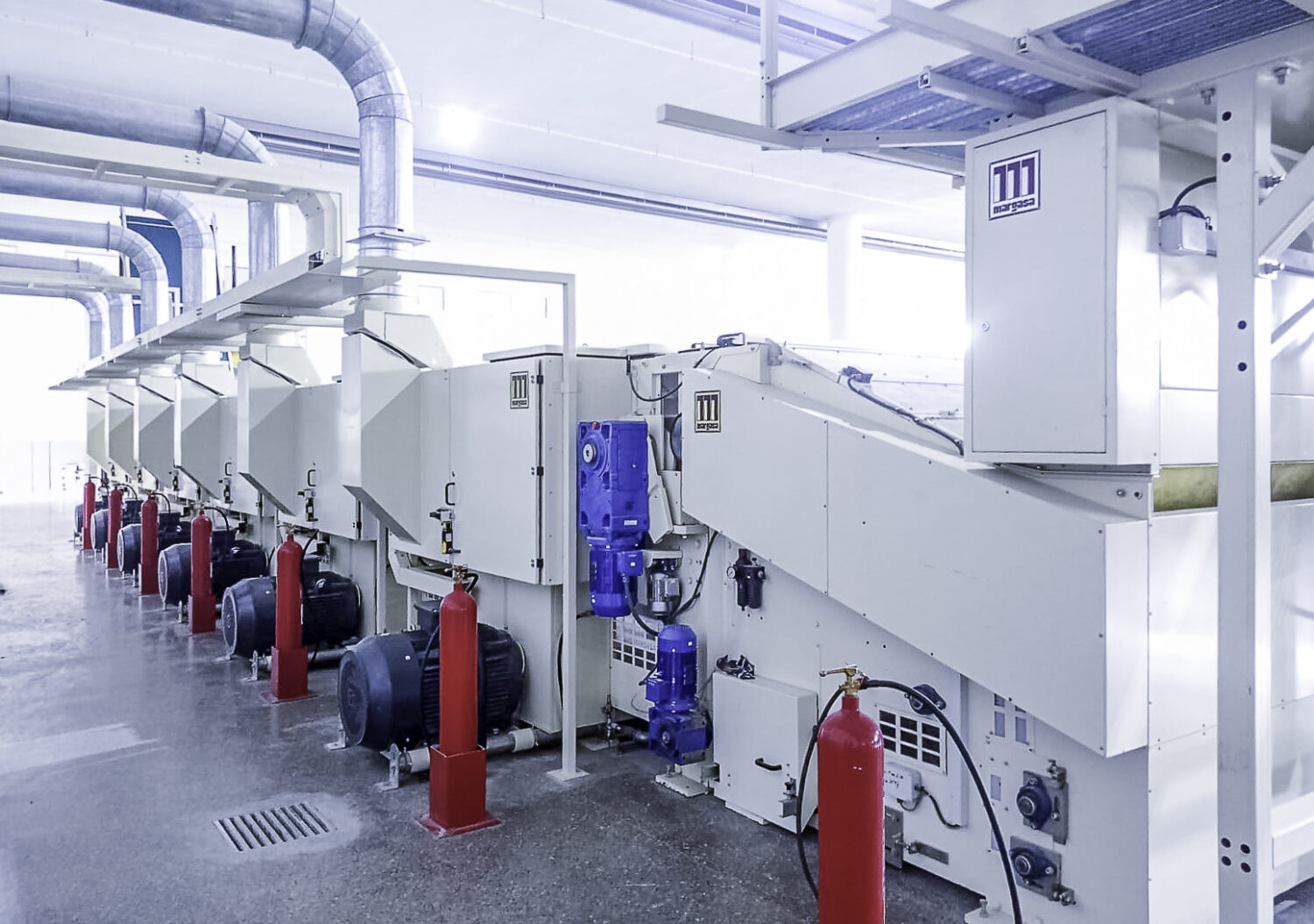

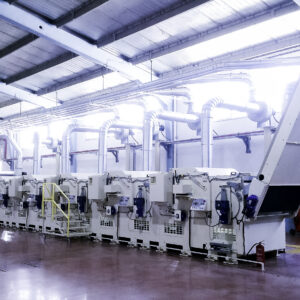

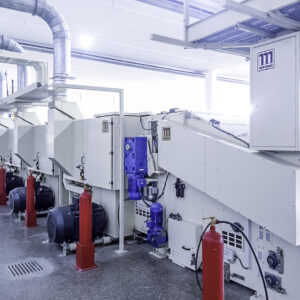

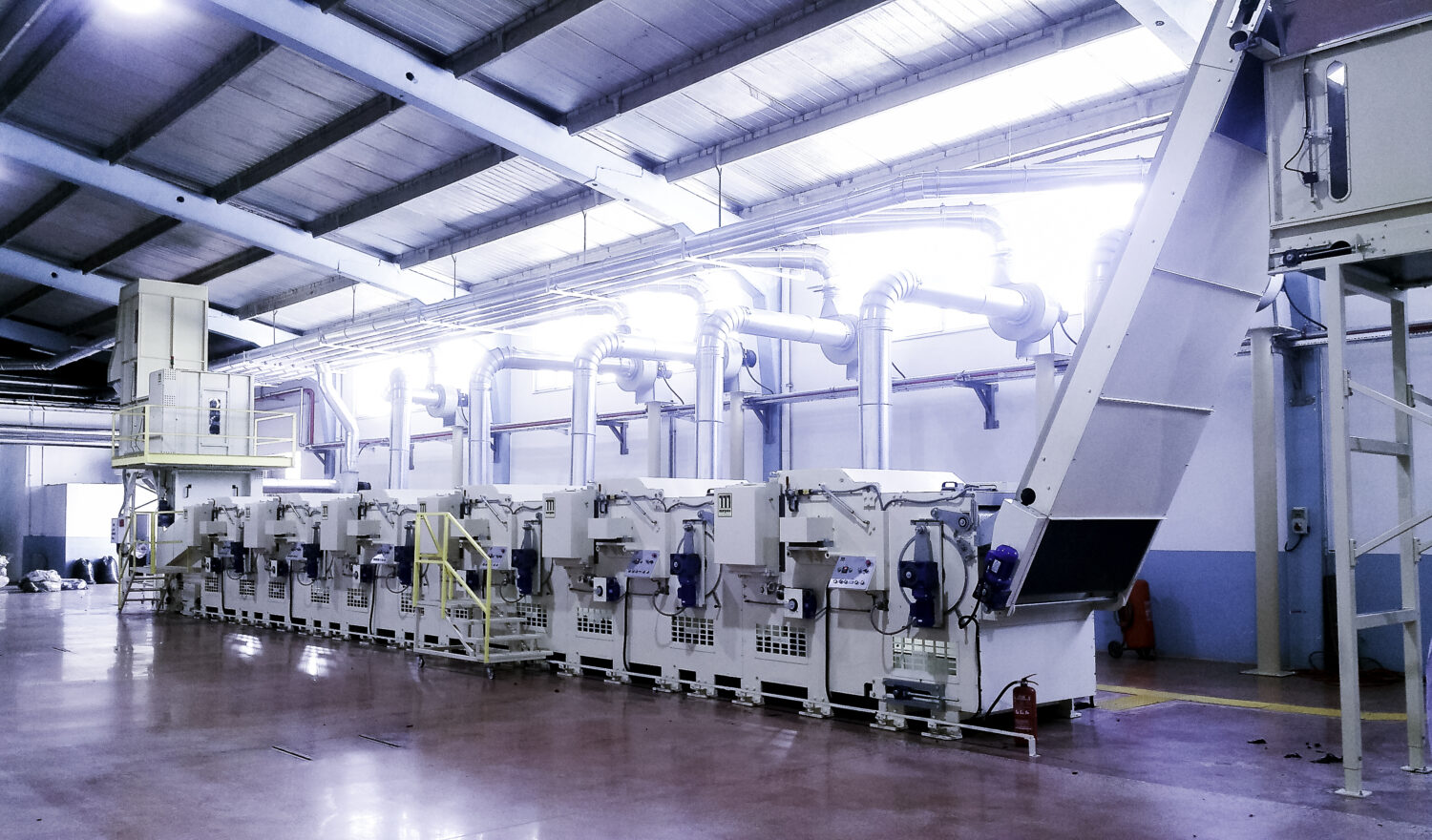

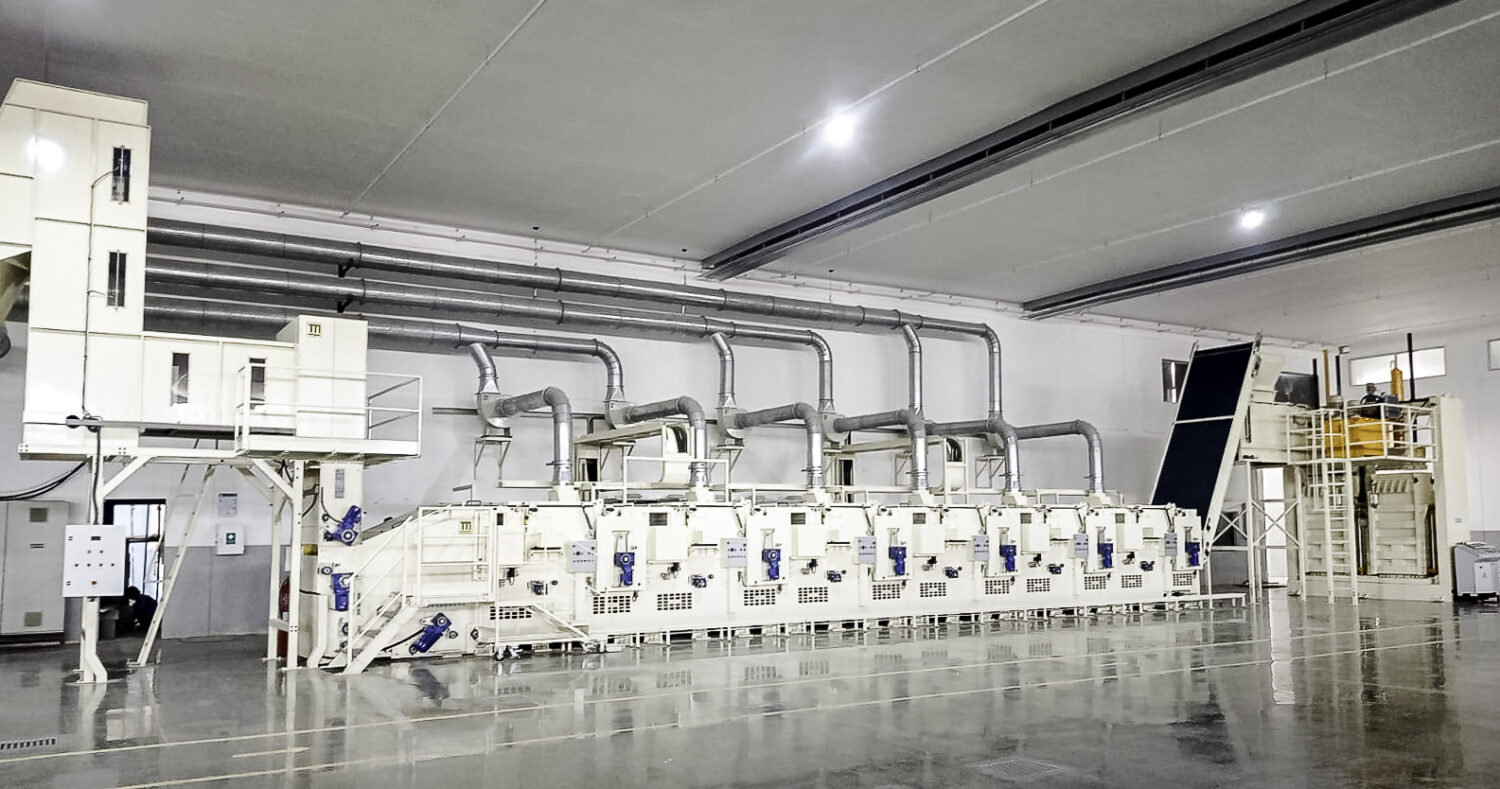

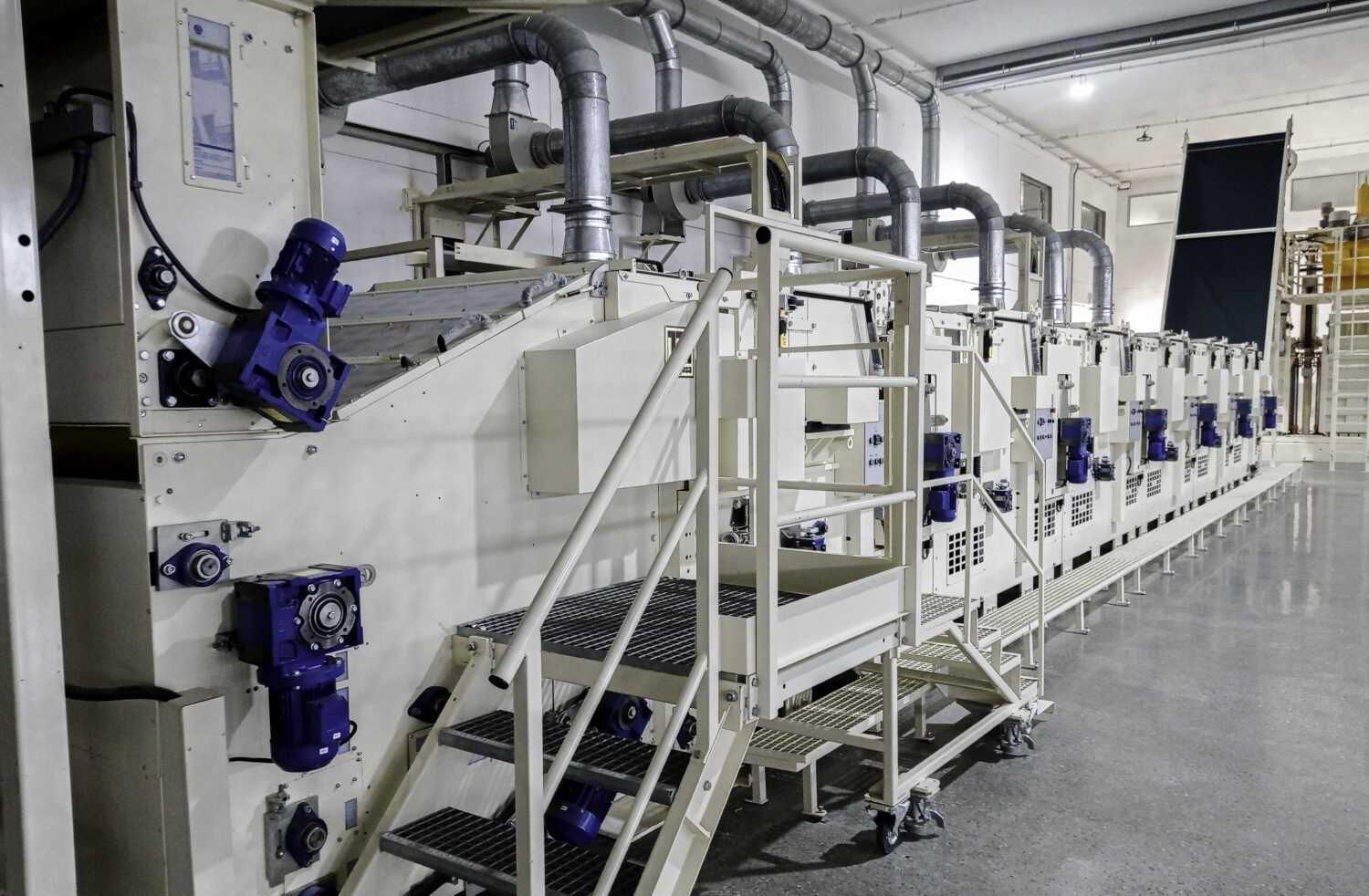

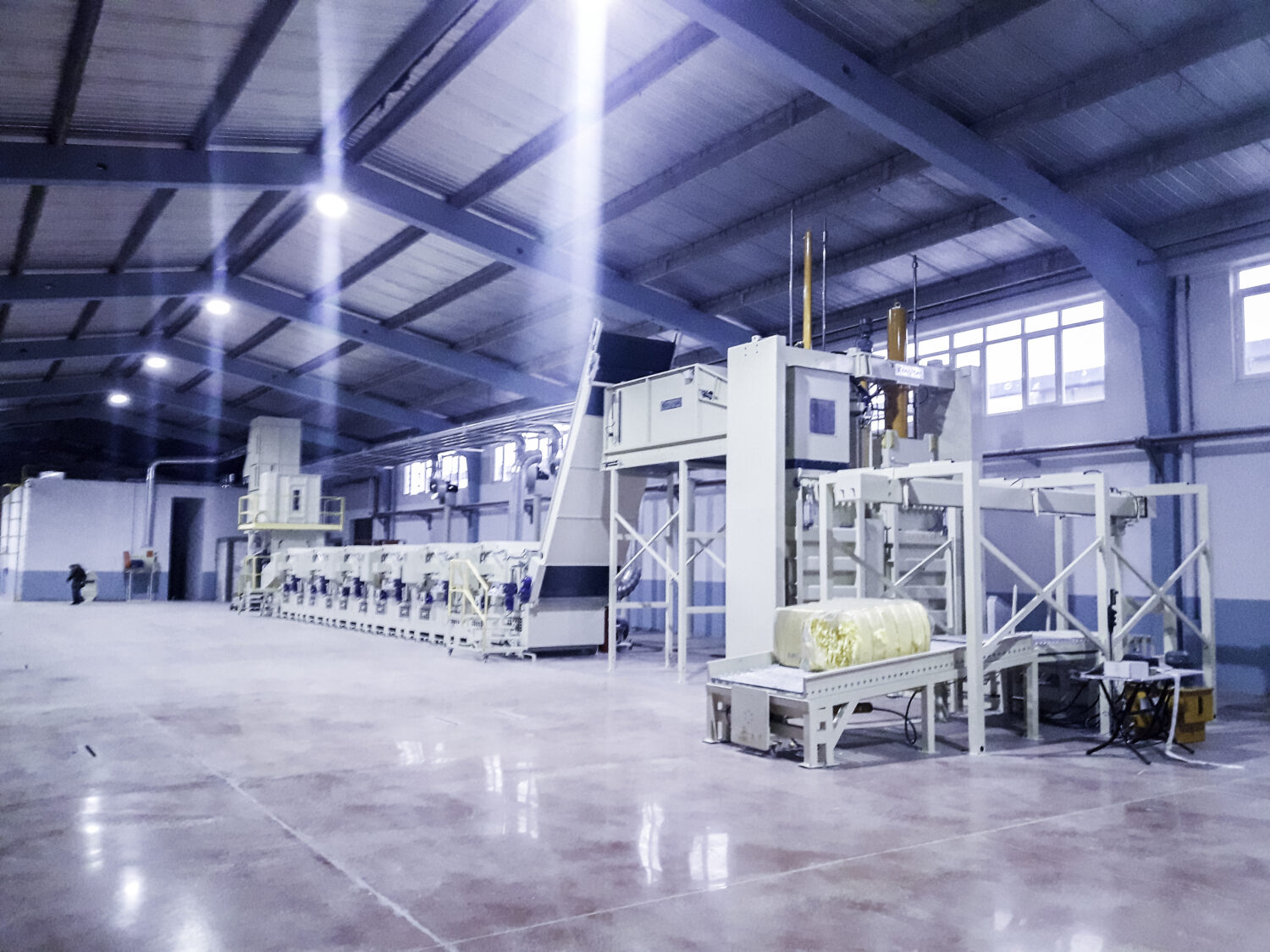

The MASTER 1500/2000 is a high-capacity rag tearing system with a modular design allowing 1 to 6 drums in series for customizable fiber opening intensity. Each drum features a feeding cylinder (first drum striated steel, others rubber-coated) working with adjustable pressure on a half-moon blade. A control unit continuously monitors fiber opening quality, enabling reprocessing if necessary. The machine module includes a condenser system for fiber delivery and easy-to-maintain components such as extraction wheels for the condenser. A fan provides dust suction, while a motor-gearbox drives the feeding group with torque control. Drums are equipped with aluminum lags and pins suitable for opening any kind of textile waste. The system also includes an automatic fire detection and extinguishing system.
Machine Diagram
